Class 900 Slip On Flange Dimensions — ASME B16.5 Chart, Bolting & Weights

Tesco Steel & Engineering manufactures ASME B16.5 Class 900 slip-on flanges — the easy-alignment, lowest-cost welded flange: the bore slides over the pipe and two fillet welds complete the joint, no bevel needed. Sizes NPS ½–24 (DN 15–600), raised face 7 mm standard with flat face on request, bore sized to suit every pipe schedule. This page is the complete reference: the full dimension chart in mm with bore, bolt circles, bolting and weights, the pressure–temperature table in bar, the welding practice that makes slip-ons work, and every material grade we produce — from A105 and A350 LF2 to SS 316, alloy steel and duplex. ISO 9001:2015 certified, made in Mumbai, India — exported worldwide.

ASME B16.5 · Class 900 NPS ½–24 · 19 Sizes SO · SORF · FF on request One Bore Fits Every Schedule Dimensions in mm · Weights in kg A105 · LF2 · SS · Alloy · Duplex ISO 9001:2015 · Exported Worldwide
What are Class 900 slip on flange dimensions? They are the dimensions tabulated in ASME B16.5-2020 Tables 16 and 17 for the slip-on flange: a bore slightly larger than the pipe OD (so one flange suits every schedule), secured by a hub fillet weld and an internal face fillet weld. Class 900 covers NPS 1/2 to 24 (no 3-1/2), rated 153.2 bar (≈2220 psig) at 38 °C for A105. Fit-up rule: set the pipe back from the face by the wall thickness plus 3 mm so the internal weld stays clear of the gasket. The full chart in mm is below.

Class 900 Slip On Flange — Overview


The slip-on flange earns its place on economics and forgiveness. The bore is machined a shade over the pipe OD, so the flange slides on without bevelling, aligns easily even on imperfect field cuts, and takes two fillet welds — one around the hub, one inside at the bore. That makes it the default welded flange for water treatment and distribution, HVAC and chilled-water headers, fire mains, low-pressure process and utility piping, pump, valve and tank nozzles, shipbuilding and offshore utilities. The honest trade-off: about two-thirds the strength and one-third the fatigue life of a weld neck of the same class — plenty for steady utility duty, not for critical or cyclic lines.

Fit-up is simple but has one rule: set the pipe end back from the flange face by the wall thickness plus about 3 mm, weld the hub fillet first (leg at least 1.4 × wall), then the internal fillet, and grind the internal weld flush if it stands proud of the face. Because the bore fits the pipe OD, no schedule needs specifying for the flange itself — a convenience unique to this type. NPS 1/2 to 2-1/2 Class 900 flanges are furnished to the Class 1500 dimensions per ASME B16.5 — note the 2-1/2 in flange is larger than the 3 in. The chart below carries every dimension against the lettered figure, with weights.

What Does Class 900 Mean? Pressure–Temperature Rating


“Class 900” (also written 900 lb or #900, roughly PN 160) is a pressure–temperature rating class, not a working pressure. ASME B16.5 Table 2 gives the maximum allowable working pressure at each temperature for each material group — here in bar for the groups we ship most:

Temperature °CGroup 1.1 — A105 / A350 LF2Group 2.1 — A182 F304Group 2.2 — A182 F316
−29 to 38153.2148.9148.9
100139.8126.6129.4
150135.2115.5118.5
200131.4107.0110.3
250125.8100.1103.4
300119.594.997.9
350112.791.093.8
400104.288.391.2
45086.386.388.2

Working pressure in bar (gauge) per ASME B16.5-2020 Table 2. The rating applies to the flange — confirm the fillet welds, bolting and gasket for the same duty, and always check the rating at your design temperature.

Facing note: raised face 7 mm standard, serrated 125–250 µin Ra; flat face on request. More on facings on our flange face types page.

Class 900 Slip On Flange Dimensions as per ASME B16.5


All dimensions in mm per ASME B16.5-2020 Tables 16 and 17. Letters follow the figure: D = flange outside diameter, B = flange thickness (excluding the 7 mm raised face), A = hub diameter, H = length through hub, ID = bore (pipe OD + clearance), G = raised face diameter, K = bolt circle (PCD), L = bolt hole diameter. Prefer it on paper? Download the full Class 900 slip on dimensions datasheet (PDF) — the same chart with the drawing, ratings, welding practice and ordering notes, ready for the workshop.

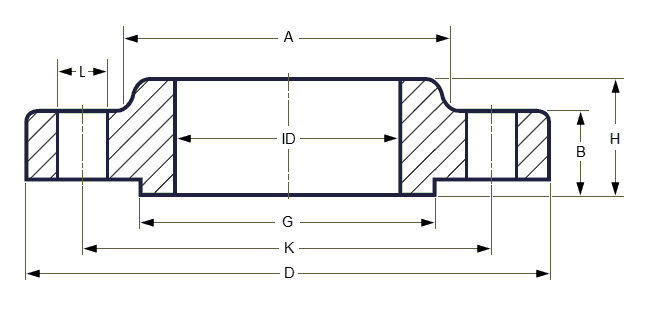

ASME B16.5 slip on flange dimension figure — flange OD D, thickness B, hub A, length through hub H, bore ID, raised face G, bolt circle K and bolt hole L

Slip On Flange Dimension Reference — ANSI / ASME B16.5

Size in InchSize in mmFlange ODThicknessHub ØLength Through HubBoreRF DiameterPCDNo. of StudsHole ØStud SizeApprox Weight (kg)
DBAHIDGK—L—
1/21512022.3383222.23582.6422.23/41.8
3/42013025.4443527.74388.9422.23/42.3
12515028.6524134.551101.6425.47/83.6
1 1/43216028.6644143.264111.1425.47/84.1
1 1/24018031.8704449.573123.8428.615.5
25021538.11055761.992165.1825.47/811.5
2 1/26524541.31246474.6105190.5828.6116.5
38024038.11275490.7127190.5825.47/812
410029044.515970116.1157235.0831.81 1/824
512535050.819079143.8186279.4834.91 1/438
615038055.623586170.7216317.51231.81 1/850
820047063.5298102221.5270393.71238.11 3/878
1025054569.9368108276.2324469.91638.11 3/8112
1230061079.4419117327381533.42038.11 3/8148
1435064085.8451130359.2413558.82041.31 1/2182
1640070588.9508133410.5470616.02044.41 5/8193
18450785101.6565152461.8533685.82050.81 7/8258
20500855108.0622159513.1584749.32054.02317
246001040139.7749203616692901.72066.72 1/2608
Reading the chart: Thickness B excludes the 7 mm raised face, while length through hub H includes it — the reverse of the Class 150/300 convention. Bore ID per ASME B16.5 (pipe OD + clearance) suits any pipe schedule. NPS 1/2 to 2-1/2 Class 900 flanges are furnished to the Class 1500 dimensions per ASME B16.5 — note the 2-1/2 in flange is larger than the 3 in. Studs per B16.5 Table B1; each hole Ø L is drilled 3 mm larger than its stud. Weights are approximate, carbon steel.

Slip On vs Other Flange Types


TypeJointCharacter
Slip On (SO, this page)Pipe through bore, two fillet weldsLowest cost, easy alignment; utility & low-pressure process
Weld Neck (WN)Full-penetration butt weldHighest strength & fatigue life; critical / cyclic service
Socket Weld (SW)Pipe in socket, one fillet weldSmooth bore small-bore joint; NPS ½–3
Threaded (TH)NPT thread, no weldingFor galvanised & no-hot-work lines; low pressure

Material Grades We Manufacture


Class 900 slip-on flanges are produced in the material families below — each supplied with EN 10204 3.1 mill certificates, heat-number traceability and PMI on request:

Material FamilyTypical Flange GradesBest suited to
Carbon SteelASTM A105 / A105NWater, utility & general process piping
LTCSASTM A350 LF2 Cl.1 / Cl.2, LF3Low-temperature service, impact tested
Stainless SteelA182 F304/L, F316/L, F321, F347Corrosive process & hygienic adjacent service
Alloy SteelA182 F5, F9, F11, F12, F22, F91High-temperature steam & refinery service
Duplex / Super DuplexA182 F51 (2205), F53 (2507), F55High strength + chloride resistance, offshore
Monel / Inconel / Hastelloy400, 600/625, C276 — on requestSevere corrosion & high temperature
Copper Nickel90/10 (C70600) — on requestSeawater & marine piping
EN / DIN EquivalentsP250GH (1.0460), 1.4301, 1.4401, 1.4404, 1.4571European specifications — on request

Fit-Up, Welding & How to Order


  • Fit-up: slide the flange on and set the pipe end back from the face by the wall thickness + 3 mm, so the internal weld cannot stand proud of the gasket face.
  • Welds: hub fillet first, leg ≥ 1.4 × pipe wall; then the internal face fillet; grind flush if it projects (ASME B31.3 Fig. 328.5.2B).
  • Facing: RF 7 mm standard, serrated per MSS SP-6; FF on request.
  • Bore: pipe OD + clearance per B16.5 — suits every schedule, no schedule needed on the order.
  • Gaskets & bolting: spiral wound (B16.20) or non-metallic (B16.21) gaskets; studs with heavy hex nuts per the chart — A193 B7 / A194 2H standard, B8M Cl.2 for stainless.
  • Marking: per MSS SP-25 — size, class, grade, heat number and our name.
  • To quote we need: size & quantity, class + standard, facing (RF / FF), material grade, certification (3.1 / 3.2, NACE, IBR, PED) and surface protection.

Use the Ask for Quote button or the inquiry form for today’s price and delivery position.

Slip On Flange ANSI / ASME B16.5 — All Pressure Classes


Pressure ClassDimension ChartApprox. A105 Rating @ 38 °C
Class 150Class #150 Slip On Flange≈285 psig
Class 300Class #300 Slip On Flange≈740 psig
Class 400Class #400 Slip On Flange≈990 psig
Class 600Class #600 Slip On Flange≈1480 psig
Class 900Class #900 Slip On Flange (this page)≈2220 psig
Class 1500Class #1500 Slip On Flange≈3705 psig

Related references: Slip On Flanges overview · Socket Weld RF Flanges · All Flange Dimension Charts · Flange Weight Chart.

Advantages & Applications


Lowest-Cost Welded Flange

Less forging, no bevel preparation, no fit-up jigs — the slip-on is the economical welded joint wherever the duty allows it.

Forgiving Fit-Up

The clearance bore slides over field-cut pipe and tolerates small misalignment that a butt weld never would — a genuine site advantage.

One Bore, Every Schedule

The bore fits the pipe OD, which never changes with schedule — so stock one flange per size and class, whatever the wall thickness.

Where They Go

Water treatment and distribution, HVAC and chilled-water headers, fire-protection mains, low-pressure process and utility piping, pump, valve and tank nozzles, shipbuilding and offshore utility services.

Frequently Asked Questions — Class 900 Slip On Flange Dimensions


What is a Class 900 slip-on flange?

A forged flange that slides over the pipe end — the bore is slightly larger than the pipe OD — and is secured with two fillet welds, one on the hub and one inside at the bore. No bevel preparation and easy alignment make it the lowest-cost welded flange for low- and medium-pressure process, water and utility piping. ASME B16.5 tabulates Class 900 slip-on flanges in NPS 1/2 to 24 (no 3-1/2).

What are the dimensions of a Class 900 slip-on flange?

They are tabulated in ASME B16.5-2020 Tables 16 and 17 and reproduced in full in the chart above: for each of the nineteen sizes, the flange OD, thickness, hub diameter, length through hub, bore, raised face diameter, bolt circle and bolting — all in millimetres — plus the approximate weight. A 6 in Class 900 slip-on flange, for example, is 380 mm OD and 55.6 mm thick (plus the 7 mm face) on a 317.5 mm bolt circle with twelve 1-1/8 in studs, at about 50 kg.

What pressure can a Class 900 slip-on flange handle?

The rating depends on material and temperature. For Group 1.1 materials such as A105 carbon steel, ASME B16.5 allows 153.2 bar (roughly 2220 psig) at 38 °C, derating with temperature — the full bar table for carbon and stainless groups is on this page. Remember the two fillet welds must suit the same duty; always confirm the rating at your design temperature.

Do I need to specify the pipe schedule for a slip-on flange?

No — and that is one of the type's conveniences. The bore is sized to the pipe OD plus clearance, and the pipe OD is the same for every schedule, so one flange fits them all. The schedule matters only for sizing the fillet welds; state it for the welder, not for the flange.

How is a slip-on flange welded?

Two fillet welds per ASME B31.3 Fig. 328.5.2B: slide the flange on, weld the hub fillet first with a leg at least 1.4 times the pipe wall, then the internal fillet at the bore. If the internal weld stands proud of the face, grind it flush so the gasket seats properly.

Why must the pipe be set back from the flange face?

Set the pipe end back from the face by the pipe wall thickness plus about 3 mm before welding. The set-back leaves room for the internal fillet weld so it does not project beyond the face and interfere with the gasket — the slip-on equivalent of the socket weld's 1.6 mm gap rule.

What is the difference between a slip-on and a weld neck flange?

Strength and fatigue life. A slip-on has roughly two-thirds the static strength of a weld neck of the same class and about one-third the fatigue life, because two fillet welds cannot match a full-penetration butt weld through a tapered hub. In exchange it costs less, needs no bevel and forgives misalignment — which is why utility and low-pressure process lines standardise on it, while critical and cyclic service goes weld neck.

What is the difference between a slip-on and a socket weld flange?

Both take the pipe into the flange, but the socket weld has a machined shoulder that locates the pipe and takes one external fillet, leaving a smooth bore — standardised only in NPS 1/2 to 3. The slip-on has a plain through-bore, takes two fillet welds and runs the full size range. In small bore the socket weld is the stronger joint; above NPS 3 the slip-on is the fillet-welded option.

When should a slip-on flange not be used?

In severe cyclic service, where the fillet welds fatigue long before a butt weld would; in high-temperature or hydrogen service, where codes prefer full-penetration welds; and in corrosive or hygienic service, where the crevice between pipe and bore traps product. In all of those, a weld neck flange is the right answer.

Does the thickness in the chart include the raised face?

No — at Class 400 and above the raised face is 7 mm, and the tabulated thickness B excludes it, while the length through hub H includes it. That is the reverse of the Class 150 and 300 convention, where the 2 mm face is included in the thickness — worth checking whenever you compare charts from different sources.

How much does a Class 900 slip-on flange weigh?

From the weight column in our chart: a 2 in weighs about 11.5 kg, a 6 in about 50 kg, a 12 in about 148 kg and a 24 in about 608 kg. These are approximate carbon-steel weights; the exact weight varies slightly with material.

What materials are available for slip-on flanges?

Carbon steel ASTM A105/A105N is the usual choice, with A350 LF2/LF3 for low temperature. Stainless A182 F304/L, F316/L, F321 and F347, alloy steel F5/F9/F11/F12/F22/F91 for high-temperature service, duplex F51 and super duplex F53/F55 — plus Monel 400, Inconel 600/625, Hastelloy C276 and copper-nickel 90/10 on request. EN equivalents such as P250GH, 1.4301 and 1.4404 are available — all with EN 10204 3.1 mill certificates.

What facing do these flanges come with?

A 7 mm raised face as standard, serrated to 125-250 microinch Ra (3.2-6.3 micrometre); flat face on request. State the facing with the enquiry.

Which gasket and bolts are used?

Spiral wound gaskets to ASME B16.20 or non-metallic gaskets to B16.21, with stud bolts and heavy hex nuts — A193 B7 / A194 2H for carbon steel, B8M Class 2 for stainless flanges. Counts, hole sizes and stud sizes per flange size are in the chart above; each hole is drilled 3 mm larger than its stud.

How are your slip-on flanges tested and certified?

Forged from certified bars and billets, normalised, quenched-and-tempered or solution annealed per the material specification, with the bore gauged on every piece. Dimensional inspection follows ASME B16.5 tolerances, face finish per MSS SP-6 and marking per MSS SP-25. Every batch ships with EN 10204 3.1 mill test certificates traceable by heat number; MPI/DPT, PMI, NACE MR0175, IBR and PED compliance and 3.2 endorsement are available on request.

What other names does this flange go by?

ANSI B16.5 900 lb SO flange, 900# slip-on raised face flange, SORF Class 900 and slip-on welding flange all describe the same product, at roughly PN 160 in metric terms. ANSI B16.5 and ASME B16.5 are also the same standard — custodianship moved from ANSI to ASME decades ago but the old name persists on drawings.

Why is the 2-1/2 in Class 900 flange bigger than the 3 in?

Because ASME B16.5 furnishes NPS 1/2 to 2-1/2 Class 900 flanges to the Class 1500 dimensions — the demand for true Class 900 small bore never justified its own table. The result is the chart's famous anomaly: the 2-1/2 in flange (245 mm OD, about 16.5 kg) is larger and heavier than the 3 in (240 mm OD, about 12 kg), which is a true Class 900 part. Order by the chart, not by intuition.
